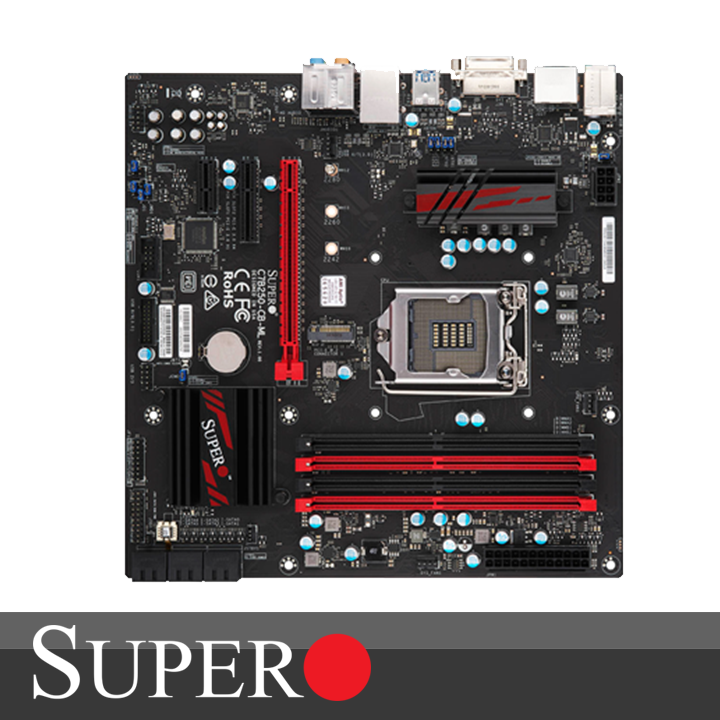

SuperO C7B250-CB-ML
When price-to-performance is the first factor you consider, the SUPERO C7B250-CB-ML is the board you should start with. With the latest features and performance design, it is our most value-driven board that still comes packed with all the great features you’d expect from a SUPERO motherboard.
Description
Product SKU: C7B250-CB-ML
Form Factor: microATX
Dimensions: 9.6\” x 9.6\”, (24.4 cm x 24.4 cm)
Processor Support:
- Support Intel® LGA 1151(H4) 7th/6th Gen Core i7/i5/i3/Pentium®/ Celeron®processors (up to 65Watt TDP)
Memory Capacity:
- 4x 288-pin DDR4 DIMM slots
- Supports up to 64GB DDR4 Non-ECC Un-Buffered memory (UDIMM) in 4 DIMM slots
- Memory TypeFrequency up to DDR4 2400MHz DDR4 Non-ECC Un-buffered 288-pin (UDIMM) gold-plated DIMMs DIMM Sizes16GB, 8GB, 4GB Memory Voltage1.2V
Chipset:
- Intel® B250 Express Chipset
On-Board SATA:
- SATA3 (6Gbps) via Intel® B250 Express Chipset 6x SATA
On-Board Audio:
- RealTek ALC888S High Definition Audio
Network Controllers:
- Intel® i219v Single Port Gigabit Ethernet
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Input/Output:
- SATA6x SATA3 (6Gbps) ports
- LAN1x RJ45 Gigabit Ethernet LAN port
- USB6x USB 3.0 ports (4 rear, 2 via headers)
- 4x USB 2.0 ports (2 rear, 2 via headers)
- Input/Output Audio7.1 HD Jacks
- Display1x DVI-D, 1x HDMI 1.4b, 1 DP (DisplayPort) 1.2 Support Triple display, Support 4K display devices
- Keyboard/MousePS/2 connector for mouse and keyboard
- Serial Port / Header1x COM port (header)
- TemperatureMonitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor 2 (TM2) support PECI
PCI-Express:
1x PCIe 3.0 x16 slots
1x PCIe 3.0 x4 slots
1x PCIe 3.0 x1 slots
1x PCIe 3.0 x4 M.2 (2242/2260/2280)(M-key)
1x PCIe 3.0 x4 slots
1x PCIe 3.0 x1 slots
1x PCIe 3.0 x4 M.2 (2242/2260/2280)(M-key)
BIOS Type:
- 128Mb SPI Flash EEPROM with AMI BIOS
- BIOS FeaturesDMI (SMBIOS) 2.7
ACPI 5.0
USB Keyboard support
Software:
- SuperDoctor® 5
Watch Dog
Power Configurations:
- ACPI Power Management
Keyboard Wakeup from Soft-Off
Power-on mode for AC power recovery
Voltage:
- +12V, +3.3V, +5V, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, Chassis intrusion header, Monitors CPU voltages, VBAT
FAN:
- Total of 3 fan headers supporting up to 3 fans
3 fans with tachometer status monitoring
Status monitor for speed control
Status monitor for on/off control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors
LED:
- Suspend static indicator LED
Other Features:
- Chassis intrusion detection
Chassis intrusion header
RoHS
