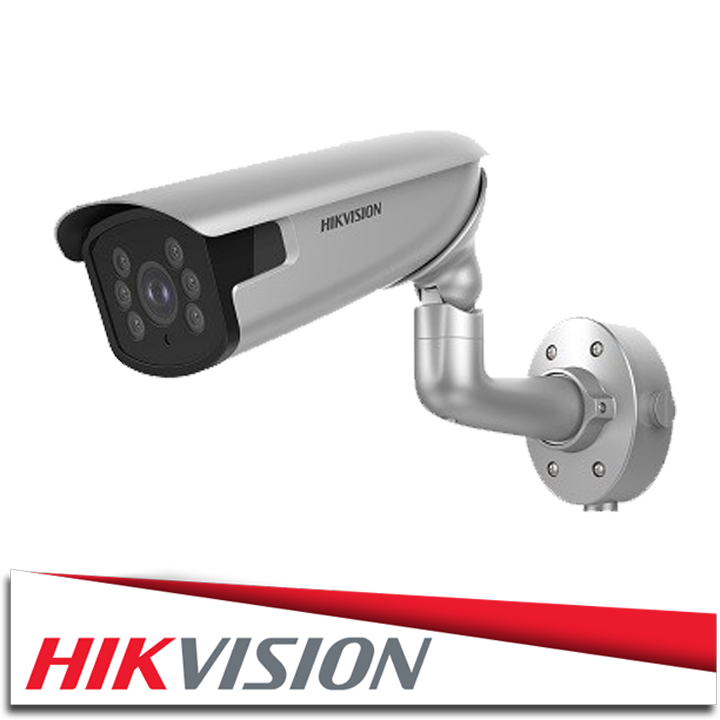

Camera
Image Sensor: 1/1.8″ Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.002 Lux @ (F1.2, AGC ON); 0.031 Lux @ (F1.5, AGC ON), 0 Lux with IR or white light on
Shutter time: 1 s to 1/100,000 s
Slow shutter: Yes
Lens: 2.8 to 12 mm and 8 to 32 mm, Optional
Day& Night: IR Cut Filter
Wide Dynamic Range: 120 dB
Compression Standard
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile: Baseline Profile/Main Profile/High Profile
Video bit rate: 32Kbps~16Mbps
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate: 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Max. Image Resolution: 1920 x 1080
Frame Rate: 50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream: 50Hz: 25fps (704 × 576, 640 × 480)
60Hz: 30fps (704 × 480, 640 × 480)
Third Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
Image Enhancement: BLC, HLC, 3D DNR, Defog, EIS
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
BLC: Support
HLC: Support
Smart Defog: Support
EIS: Support
3D DNR: Support
Network
Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function: One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter
System Compatibility: ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Intelligent
Behavior analysis: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Interface
Communication Interface: 1 RJ45 10M/100M/1000M self-adaptive Ethernet port, 1 RS-485 interface
Audio: 1 input (line in/mic.in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
Alarm: 2 inputs, 2 outputs (up to 24 VDC 1 A or 110 VAC 500 mA)
Video Output: 1Vp-p Composite Output (75 Ω, BNC)
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes
Smart Feature-set
Behavior Analysis: Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Line Crossing Detection: Cross a pre-defined virtual line
Intrusion Detection: Enter and loiter in a pre-defined virtual region
Region Entrance: Enter a pre-defined virtual region from the outside place
Region Exiting: Exit from a pre-defined virtual region
Unattended Baggage: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal: Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections: Scene change detection, defocus detection
General
IR Range: 2.8 to 12 mm: up to 50 m; 8 to 32 mm: up to 100 m
Operation Condition: -30 °C to 60 °C (-22 °F to 140 °F), -H: -40 °C to 60 °C (-40 °F to 140 °F)
Humidity 95% or less (non-condensing)
Power Consumption: -IZS: 36 VDC, 1 A, max. 35 W
-LZS: 36 VDC, 1.17 A, max. 42 W
Impact Protection: IK10
Weather Proof: IP67
Dimensions: Camera: 560 × 339 × 160 mm (22.0″ × 13.3″ × 6.3″)
Weight: Camera: approx. 6 kg (13.2 lb.)
With Package: approx. 8 kg (17.6 lb.)
