Description

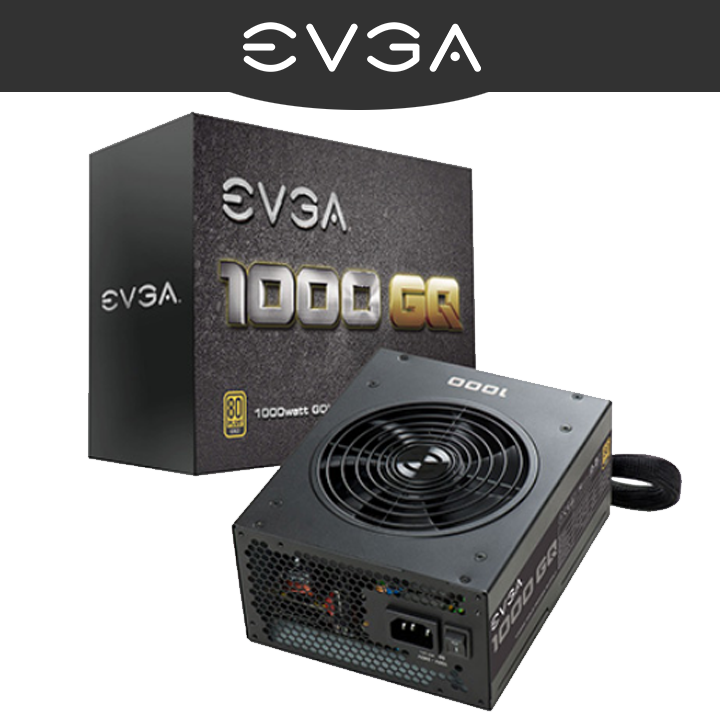

Introducing the latest in the EVGA power supply lineup; the GQ series. These power supplies take some of the best features from EVGA�s award winning power supplies, like EVGA ECO fan mode for near silent operation, Japanese Capacitor Design and a highly efficient design, at an excellent value. These new power supplies are 80 Plus Gold rated and offer an outstanding 5 Year Warranty that�s backed by world class EVGA support.
SPECIFICATION:
Cable Length
| ATX Cable |
1x 600mm (m) |
| EPS Cable |
2x 650mm (m) |
| PCIE Cable |
4x 650mm, 750mm, 2x 650mm (m) |
| SATA Cable |
3x 550mm, 650mm, 750mm (m) |
| Four-Pin Peripheral Cable |
1x 550mm, 650mm, 750mm (m) |
| Floppy Adapter |
1x 100mm (m) |
| AC Power |
1x 1530mm (m) |
| Modular Cable Type |
Modular |
Connector Quantity
| 24 Pin ATX |
1x |
| EPS (CPU) |
2x 8pin (4+4) |
| PCIE |
10x 8pin (6+2) |
| SATA |
12x |
| Four-Pin Peripheral |
3x |
| Floppy |
2x |
Input
| Input Voltage |
100 – 240 VAC |
| AC Input |
16A |
| Input Frequency Range |
50 – 60 Hz |
| Efficiency |
90% (115VAC) / 92% (220VAC~240VAC) or Higher Typical |
Output
| Rail |
+3.3V |
+5V |
+12V |
+5Vsb |
-12V |
| Max output |
24A |
24A |
83.3A |
3A |
0.5A |
| 83.3A |
| 120W |
999.6W |
15W |
6W |
| Total |
1000W @ +50C |
Additional Details
| Operating Temperature |
0° to 50° C |
| Japanese Capacitors |
100% |
| ECO Mode |
Yes |
| MTBF |
100,000 Hours |
| Net Weight |
7 lbs |
| Size |
85mm (H) x 150mm (W) x 180mm (L) |
| Approvals |
TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement |
| Fan Size / Bearing |
135mm Fluid Dynamic Bearing |
