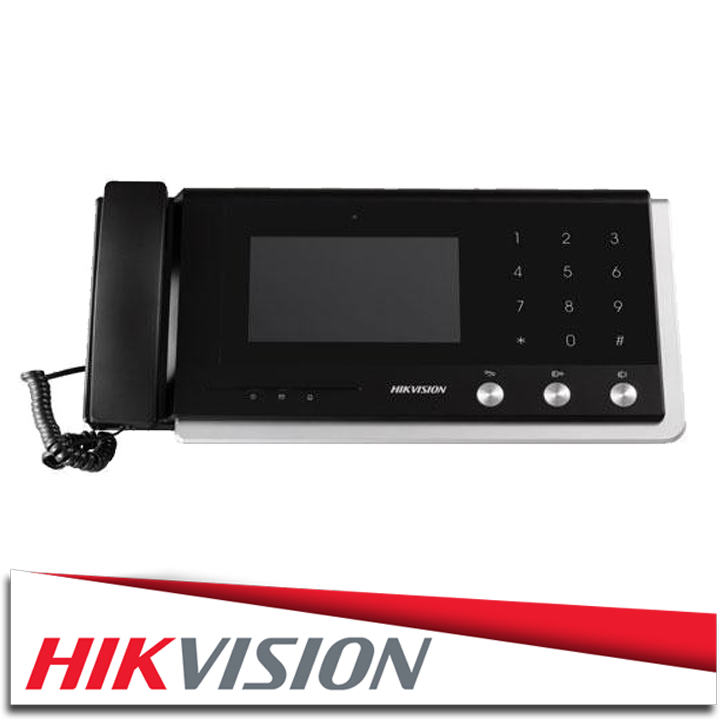

DS-KM8301
Video Intercom Master Station
Description
| System Parameters | ||
|---|---|---|
| Operation System: | Embedded Linux Operation System | |
| Processor: | High-Performance Embedded SOC Processor | |
| Display Parameters | ||
|---|---|---|
| Display Screen: | 7-Inch Colorful TFT LCD | |
| Display Resolution: | 1024 × 600 | |
| Operation Method: | Capacitive Touch Screen, Touch Key, Physical Button | |
| Operation interface: | Flattened UI Operation Interface | |
| Video Parameters | ||
|---|---|---|
| Camera: | CMOS 0.3 MP | |
| Video Compression Standard: | H.264 | |
| Resolution: | 1280 x 720, 704 x 576 | |
| Video frame rate: | 25 fps, 12.5 fps | |
| Audio Parameters | ||
|---|---|---|
| Audio Input: | Built-in Omnidirectional Microphone + External Handset | |
| Audio Output: | Built-in Loudspeaker + External Handset | |
| Audio Compression Standard: | G.711 U | |
| Audio Compression Rate: | 64 Kbps | |
| Audio Quality: | Noise Suppression and Echo Cancellation | |
| Network Parameters | ||
|---|---|---|
| Network Protocol: | TCP/IP, RTSP | |
| Ethernet: | 10/100/1000 Mbps Self-Adaptive Ethernet | |
| Device Interfaces | ||
|---|---|---|
| I/O Output: | 2 On-Off Output, 2 Relay Output | |
| I/O Input: | 4 On-Off Input | |
| RS-485: | 2 RS-485 Half-Duplex Port | |
| Network Interface: | 1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface | |
| General | ||
|---|---|---|
| Power Supply: | 12 VDC | |
| Power Consumption: | ≤10 W | |
| Material: | Plastic | |
| Certification: | FCC, IC, CE, C-TICK, ROHS, REACH, WEEE | |
| Working Humidity: | 10% to 90% | |
| Working Temperature: | -10° C to + 55° C (14° F to 131° F) | |
| Dimensions(L × W × H): | 436 mm × 215 mm × 67 mm (17.2″ ×8.5″ × 2.6″) | |
