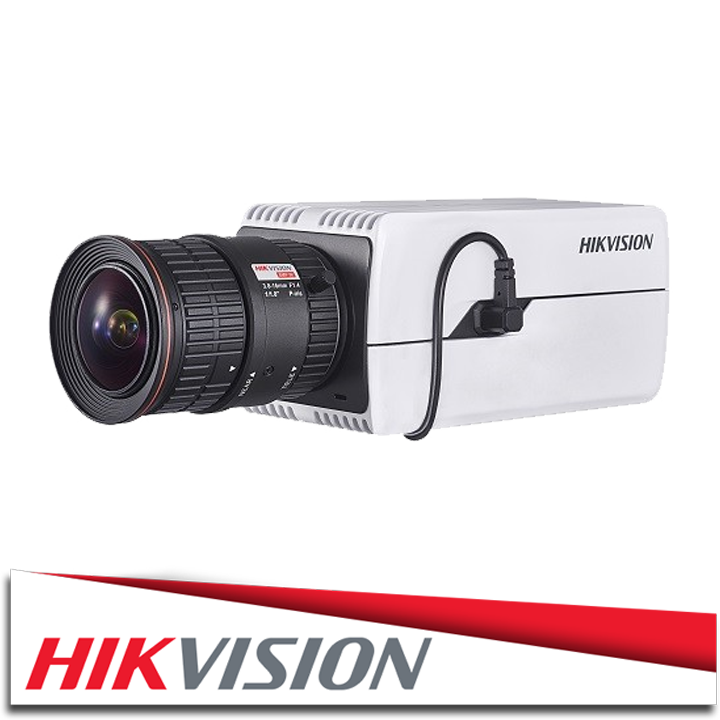

DS-2CD7026G0-(AP)
2 MP Box Network Camera
• 1/1.8″ progressive scan CMOS
• Full HD1080p video, up to 60fps
• Auto-iris, DC drive and P-iris optional
• 140dB WDR
• Alarm I/O, Audio I/O, mono sound
• Color: 0.002 Lux @(F1.2, ADC On)
• H.265, H.265+. H.264, H.264+
• Auto back focus (ABF) optional
• High accuracy face detection and capture, which adopts new face detection, tracking and grading algorithms powered by deep-learning technology
• Perimeter protection, based on deep learning powered target detection and classification algorithms, supports line crossing, intrusion, region entrance, and region exit
• Five defined streams and up to five custom streams
• Built-in microSD/SDHC/SDXC card slot, up to 256 GB
Description
| Camera | ||
|---|---|---|
| Image Sensor: | 1/1.8″ Progressive Scan CMOS | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | Color: 0.002 Lux @ (F1.2, AGC ON), B/W: 0.0002 Lux @ (F1.2, AGC ON) | |
| Shutter time: | 1 s to 1/100,000 s | |
| Slow shutter: | Yes | |
| Lens Mount: | CS | |
| Auto Iris: | DC drive(-P: support P-Iris) | |
| Day& Night: | IR Cut Filter | |
| Wide Dynamic Range: | 140dB | |
| Focus: | ABF(-A model) | |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG | |
| H.264 code profile: | Baseline Profile/ Main Profile/High Profile | |
| Video bit rate: | 32Kbps~16Mbps | |
| Audio Compression: | G.711/G.722.1/G.726/MP2L2/PCM | |
| Audio bit rate: | 64Kbps (G.711)/16Kbps (G.722.1)/16Kbps (G.726)/32-192Kbps (MP2L2)/PCM (32Kbps) | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 1920 x 1080 | |
| Frame Rate: | 50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720) |
|
| Sub Stream: | 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480) |
|
| Third Stream: | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480) |
|
| Image Settings: | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser | |
| Target Cropping: | Yes | |
| 3D DNR: | Support | |
| Network | ||
|---|---|---|
| Network Storage: | Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR | |
| Alarm Trigger: | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error | |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
|
| General Function: | One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter | |
| System Compatibility: | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK | |
| Intelligent | ||
|---|---|---|
| Behavior analysis: | Line crossing, intrusion, region entrance, region exiting. Support alarm triggering by specified target types (human and vehicle).Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag,etc. | |
| Face Capture: | Face detection performance: up to 30 faces per frame Detectable face position:͗ supports swing left and right from -65° to 65°, tilt up and down from -45° to 45 |
|
| Interface | ||
|---|---|---|
| Communication Interface: | 1 RJ45 10M/100M/1000M Ethernet port 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, selp-adaptive) |
|
| Audio: | 1-ch 3.5 mm input (line in), 1-ch 3.5mm output, mono | |
| Alarm: | 2 inputs, 2 outputs (up to 12 VDC 1A or 10 VAC 500 mA) | |
| Video Output: | 1Vp-p Composite Output (75 Ω, BNC) | |
| On-board storage: | Built-in micro SD/SDHC/SDXC slot, up to 256 GB | |
| Reset Button: | Yes | |
| Smart Feature-set | ||
|---|---|---|
| Behavior Analysis: | Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal | |
| Line Crossing Detection: | Cross a pre-defined virtual line | |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region | |
| Region Entrance: | Enter a pre-defined virtual region from the outside place | |
| Region Exiting: | Exit from a pre-defined virtual region | |
| Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials | |
| Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display. | |
| Exception Detections: | Scene change detection, defocus detection | |
| Statistics: | Object Counting (Entrance and Exit object number is accounted and showed on screen in real time) | |
| General | ||
|---|---|---|
| Operation Condition: | -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing) |
|
| Power Supply: | 12 VDC ± 20%, 24 VAC ± 20%, PoE (802.3af, class 3) Terminal block for DC and AC input |
|
| Power Consumption: | With extra load: 12 VDC, 1.0 A, max. 12 W; 24 VAC, 0.9 A, max. 12 W; PoE 802.3af, 36 V to 57 V), 0.1 A to 0.3 A, class 3 Without extra load: 12 VDC, 0.8 A, max. 9 W; 24 VAC, 0.75 A, max. 9 W; PoE 802.3af, 36V to 57 V), 0.1 A to 0.3 A, class 3 “with extra load” means that an extra device is connected to and powered by the camera. |
|
| Dimensions: | Camera: 142.6 × 69.8 × 68 mm (5.61ʺ × 2.75ʺ × 2.68ʺ) With package: 315 × 140 × 140 mm (12.4ʺ × 5.51ʺ × 5.51ʺ) |
|
| Weight: | -AP: approx. 730 g (1.61 lb.), 1020 g (2.25 lb.) with package Non-AP: approx. 690 g (1.52 lb.), 975 g (2.15 lb.) with package |
|
