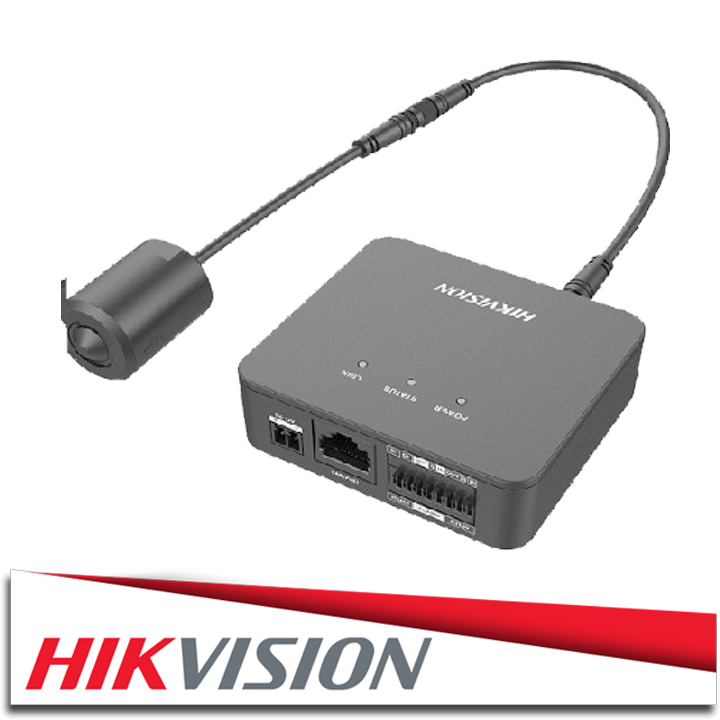

Camera
Image Sensor: 1/2.8″ Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.005 Lux @(F1.2, AGC ON), 0.014 Lux @(F2.0, AGC ON)
B/W: 0.0001 Lux @(F1.2, AGC ON), 0.0003 Lux @(F2.0, AGC ON)
Shutter time: 1 s to 1/100,000 s
Slow shutter: Yes
Lens: 2.8 mm/3.7 mm/4.0 mm/6.0 mm
Lens Mount: Pinhole
Adjustment Range: Pin-hole:
2.8 mm @ F2.5, horizontal FOV 88.2°
3.7 mm @ F2.5, horizontal FOV 71°
M12:
2.8 mm @ F2.0, horizontal FOV 104°
4.0 mm @ F2.0, horizontal FOV 80°
6.0 mm @ F2.0, horizontal FOV 50°
Day& Night: Electronic
Wide Dynamic Range: 120 dB
Compression Standard
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile: Baseline Profile/Main Profile/High Profile
Video bit rate: 32Kbps~16Mbps
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Dual Stream: Yes
Triple Streams: Yes
Max. Image Resolution: 1920 x 1080
Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream: 50Hz: 1fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 640 × 360, 352 × 288, 320 × 240)
60Hz: 1fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 640 × 360, 352 × 240, 320 × 240)
Image Enhancement: BLC, 3D DNR
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Target Cropping: No
BLC: Support
3D DNR: Support
ROI: 1 fixed region for main stream and sub stream
Picture Overlay: No
Day/Night Switch: Day/Night/Auto/Schedule/ Triggered by Alarm In
Network
Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function: One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter
System Compatibility: ONVIF (Profile S, Profile G), ISAPI
Intelligent
Behavior analysis: Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Interface
Communication Interface: 1 RJ45 10M/100M Ethernet port
1 VIN port
1 RS-485
Audio: 1 input, 1 output
Alarm: 1 input, 1 output (up to 24 VAC, 1A or 110 VAC, 500mA)
Alarm Input: 1
Alarm Output: 1
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes
Audio
Environment Noise Filtering: Support
Audio I/O: support
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Smart Feature-set
Behavior Analysis: Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection: Cross a pre-defined virtual line
Intrusion Detection: Enter and loiter in a pre-defined virtual region
Unattended Baggage: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal: Objects removed from the pre-defined region, such as the exhibits on display.
Recognition: Face Detection
General
Operation Condition: -10 °C to 40 °C (14 °F to 104 °F), humidity: 5% to 95% (non-condensing)
Power Supply: 12 VDC ± 20%, two-core terminal block, PoE: (802.3af, class 2)
Power Consumption: 12 V DC ± 20%, 0.25 A, max. 3 W
PoE: (802.3af, 36V-57V), 0.2A to 0.1A, Max: 3.5W
Dimensions: Camera: 77.1 × 69 × 26 mm (3.04″ × 2.72″ × 1.02″)
With package: 254 × 164 × 130 mm (10″ × 6.46″ × 5.12″)
Weight: Camera: 87 g (0.19 lbs.)
With package: 220 g (0.49 lbs)
