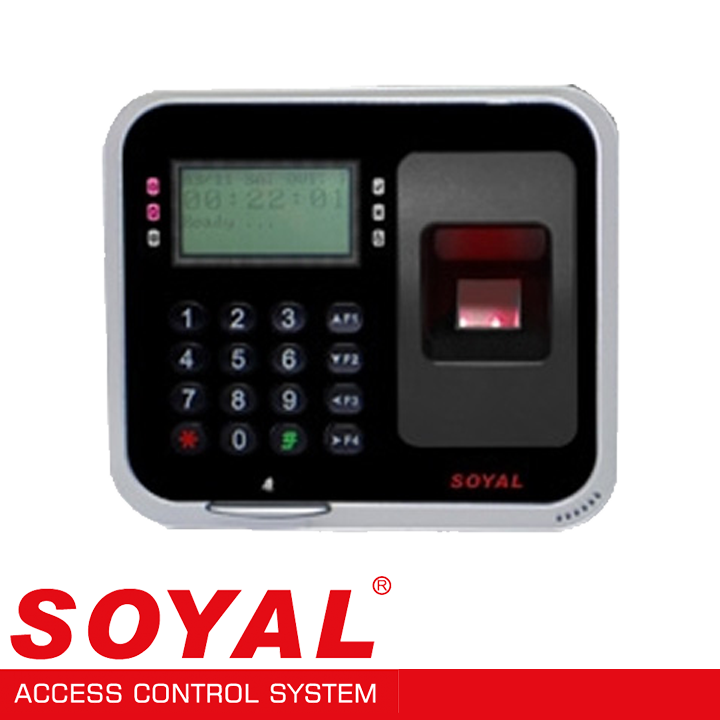

AR-837EFS-9000DO-1X
AR-837EFS-9000DO-1X
AR-837EFS-9000DO-1X SPECIFICATION: Frequency 125kHz or HID Prox II or 13.56MHz or Dual Band(125kHz+13.56MHz) or Triple Bual(125kHz+HID Prox II+13.56MHz) Standard 125kHz: EM Standard) HID Prox(Option) Indala Prox(Option) 13.56MHz
Description
AR-837EFS-9000DO-1X
SPECIFICATION:
| Frequency | 125kHz or HID Prox II or 13.56MHz or Dual Band(125kHz+13.56MHz) or Triple Bual(125kHz+HID Prox II+13.56MHz) |
| Standard | 125kHz: EM Standard) HID Prox(Option) Indala Prox(Option) 13.56MHz: ISO 14443A ISO 15693(Option) DESFire(Option) PSAM(Option) NFC(Option) |
| Reading Range | 125kHz: 5-15cm 13.56MHz: 2-5cm |
| Power Supply | 10-24VDC |
| Power Consumption | <5W |
| Data Transfer Rate | 9600 bps(N,8,1)+10/100M Base T |
| Digital Input | Egress(R.T.E)X2/Door contact x 2 |
| Relay Output | Alarm Relay / Lock Relay |
| Lock Relay Time | Toggle, 0.1-600Sec. |
| Alarm Time | Toggle, 1-600Sec. |
| Tamper Switch | Limit Switch(Form C) |
| User Capacity | 16,000 |
| Event Log | 32,000 |
| External Reader | 1 WG Port |
| Anti-pass-back | Yes |
| Serial Port | Yes |
| Real Time Clock | Yes |
| LCD Panel | 128 x 64 dot LCD Panel(4lines messages, 16 characters/lines) |
| Door Bell Button | Yes |
| Transistor Output | Arming LED/ Alarm/ Duress/ WG Lock Relay/ Security trigger signal |
| Protection Standard | IP55 |
| Indicator | 6 LED & 1 Beeper |
| Keypad Material | Illuminated Rubber |
| Housing Material | ABS |
| Time Zone | 63 |
| Operation Mode | Stand-Alone/Networking |
| Dimension(mm) | 128(L)X147(W)X65(H) |
