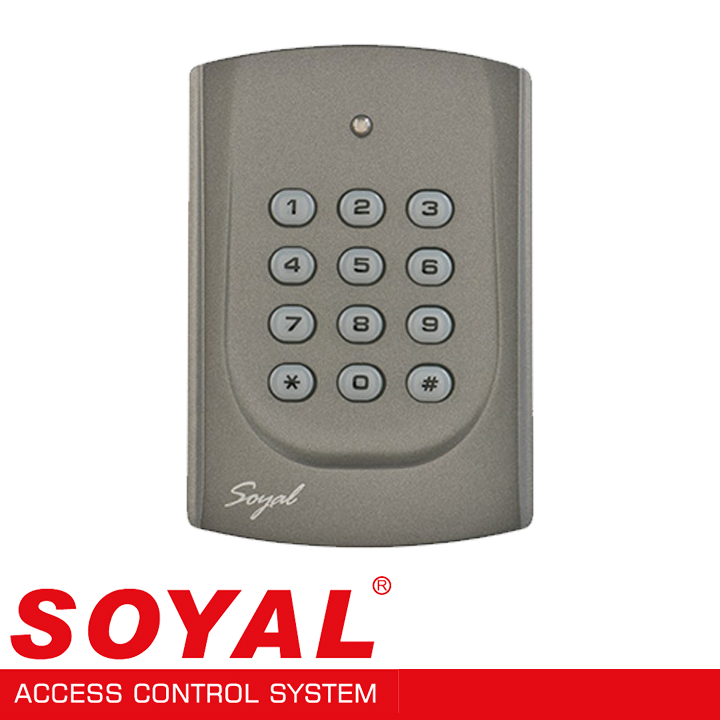

AR-721HBR1111
AR-721HBR1111
AR-721HBR1111/DR1N11 SPECIFICATION: Frequency 125kHz or 13.56MHz Standard 125kHz: EM Standard 13.56MHz: ISO 14443A ISO 15693(Option)) DESFire(Option) PSAM(Option) NFC(Option)
Description
AR-721HBR1111/DR1N11
SPECIFICATION:
| Frequency | 125kHz or 13.56MHz |
| Standard | 125kHz: EM Standard 13.56MHz: ISO 14443A ISO 15693(Option)) DESFire(Option) PSAM(Option) NFC(Option) |
| Reading Range | 125kHz: 10-18cm 13.56MHz: 2-8cm |
| Power Supply | 9-16VDC |
| Power Consumption | <3W |
| Communication Interface | RS-485 |
| Data Transfer Rate | 9600 bps(N,8,1) |
| Digital Input | Egress(R.T.E)/Door contact |
| Relay Output | Lock Relay |
| Lock Relay Time | Toggle, 0.1-600Sec. |
| Alarm Time | Toggle, 1-600Sec. |
| Tamper Switch | Limit Switch(Form C) |
| User Capacity | M4/M8: 1,024 M6: 65,000 |
| Event Log | 1,200 |
| External Reader | 1 WG Port |
| Anti-pass-back | Yes(Only M4/M8) |
| Lift Control | 32 Floors, 1,024 Users |
| Serial Port | Yes |
| Real Time Clock | Yes |
| LCD Panel | No |
| Door Bell Button | No |
| Transistor Output | Arming LED/Alarm/Duress/Security trigger signal |
| Protection Standard | No |
| Indicator | 1Bi-Color LED & 1 Beeper |
| Keypad Material | Rubber |
| Housing Material | ABS |
| Time Zone | 11/63(Connect to multi-door Networking Controller) |
| Operation Mode | Stand-Alone/Networking |
| Dimension(mm) | 111(L)X77(W)X26(H) |
